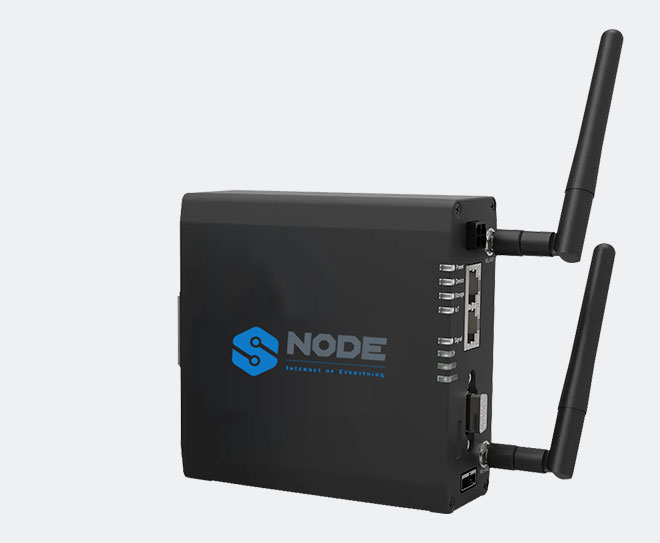

The S-Node modular gateway is the sole device that connects to the internet. S-Node modular gateway is plug and plays device. S-Node modular gateway is collect information from S-Node and transmits the data to the cloud. S-Node modular gate-way is the combination of two devices.
The data is converted into RF by the gateway RF frontend.The data is sent to the S-Node cloud using the S-Node modular gateway.
The gateway motherboard has dual Gigabit Ethernet connectors and dual USB 3.0 ports, which makes it suitable for soft router applications that require less hardware. It has 4 GB RAM and 32 GB eMMC storage allowing for quick boot-up times and a seamless overall experience.

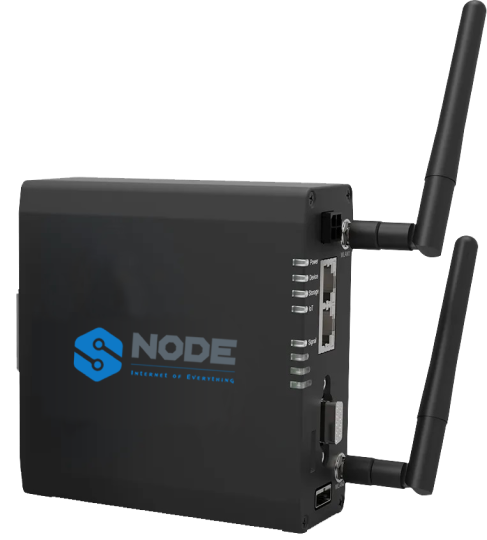

The S-Node Modular gateway includes a range of I/O peripherals such as MIPI CSI, MIPI DSI, micro-HDMI to connect displays/cameras, a standard 9-pin USB 3.0 header for additional USB expansion, and an FPC connector all packaged in a compact form factor. It has a PC/ABS case with an Aluminum alloy on top, which has a large sink to cool down at extreme loads.
This enclosure provides better protection and is ideal for industrial applications. The case has long rubber feet for better stability when placed on a flat surface and mounted in two different methods. One is to use the keyhole slot wall mount and hang it on the wall in two different orientations or use the three mounting holes and mount it onto a DIN rail.
The Gateway Motherboard of S-Node Modular Gateway enables seamless connectivity and efficient data processing through following features for reliable IoT applications.
Dual Gigabit Ethernet Connectors
Broadcom BCM2711 quad-core Cortex- A72 (ARM v8) 64-bit Soc 1.5GHz
4GB LPDDR4
32GB eMMC
0℃ to 80℃
USB, Ethernet, Micro HDMI, Micro-SD CARD
101mm x 73mm
FCC , CE,EU DoC, UK DoC, RoHS

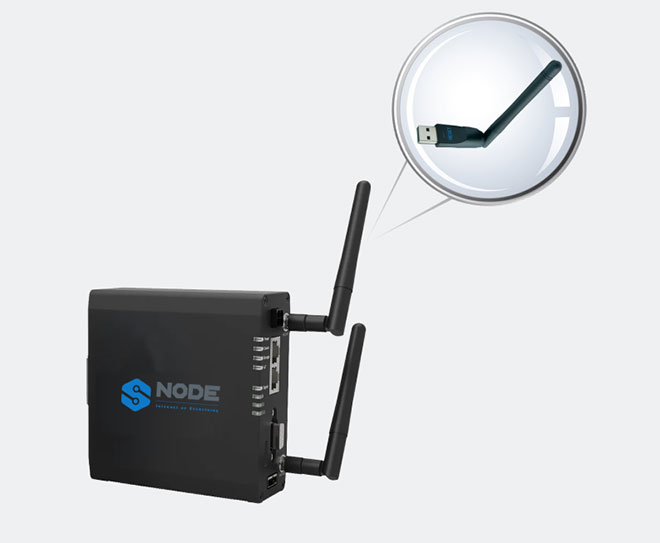

The Gateway RF frontend is one type of USB antenna. The Gateway RF front end converts the data in radio frequency and sends it to the S-Node cloud. The Gateway RF front easily plugs into the gateway motherboard. It is a fully moveable device and easy to use.
The Gateway RF Frontend of S-Node Modular Gateway ensures accurate and secure conversion of data into RF signals for seamless transmission through following features.
2405 MHz to 2480MHz
PCB antenna
1.5db
B
Pi Network
